Salesforce API

How to get to the “Manage sources” page

---

Setup with user-to-machine (on-behalf-of) authentication (recommended)

High-level flow

• User logs in with Convier app registration in Entra ID
• Convier requests a token scoped to a Salesforce app registration in Entra on-behalf-of the user
• Convier sends the on-behalf-of token to Salesforce and exchanges it for a Saleforce access token associated with a user in Salesforce
  • A custom Apex class in Salesforce validates token signature and audience (that the token belongs to the Salesforce app registration in Entra), and determines user
• The access token is passed along with API requests to salesforce

In Entra

• Create App Registration Salesforce OIDC
  • Copy App/client ID (reference: $entraSalesforceAppId)
  • Add scope user_impersonation
• Assign Convier App Registration delegated permission user_impersonation on Salesforce OIDC
  • Remember to grant consent

In Salesforce

• App:
  • Create new External Client App
    • External Client App Name: convier
    • API Name: convier
    • Oauth settings:
      • Callback URL: http://localhost (not in use)
      • Selected oauth scopes: Manage user data via APIs (api)
    • Flow enablement:
      • Enable Token Exchange Flow: checked
      • Require secret for Token Exchange Flow: checked
    • Under policies, check Enable Token Exchange Flow under OAuth Flows and External Client App Enhancements
    • Copy Consumer key ($consumerKey) and Consumer secret ($consumerSecret)
• Security:
  • Go to Security -> Remote Site Settings
  • Add URL: https://login.microsoftonline.com
• Token validation:
  • Go to Custom Code -> Apex Classes
  • Assuming you do not already have an implementation for Auth.Oauth2TokenExchangeHandler, create one and use the following implementation:

global class ConvierTokenExchangeHandler extends Auth.Oauth2TokenExchangeHandler {

    private static final String OIDC_AUDIENCE = '$entraSalesforceAppId';
    private static final String EXTERNAL_IDP_JWKS_URL = 'https://login.microsoftonline.com/$tenantId/discovery/v2.0/keys';

    private Auth.UserData getUserDataFromJWT(Auth.JWT jwt) {
        String email = (String) jwt.getAdditionalClaims().get('upn');

        Auth.UserData userData = new Auth.UserData(null, null, null, null, email, null, null, null, null, null, null);

        return userData;
    }

    private User findExistingUser(Auth.UserData data) {
        String email = data.email;

        List<User> existingUser = [SELECT Id, Username, Email, FirstName, LastName, Alias, ProfileId FROM User WHERE Email=:email LIMIT 1];

        if (existingUser.isEmpty()) {
            return null;
        }

        return existingUser[0];
    }

    // Manual extraction of audience, as built-in method does not seem to exist
    private string getAudience(String incomingToken) {
        List<String> parts = incomingToken.split('\\.');

        Integer pad = Math.mod(4 - Math.mod(parts[1].length(), 4), 4);
        String padding = '='.repeat(pad);

        String payloadB64 = parts[1].replace('-', '+').replace('_', '/') + padding;
        String payloadJson = EncodingUtil.base64Decode(payloadB64).toString();
        Map<String, Object> claims = (Map<String, Object>) JSON.deserializeUntyped(payloadJson);
        Object audClaim = claims.get('aud');
        if (audClaim instanceof String) {
            return (String) audClaim;
        } else if (audClaim instanceof List<Object>) {
            return (String)((List<Object>)audClaim)[0];
        }
        return null;
    }

    global override Auth.TokenValidationResult validateIncomingToken(String appDeveloperName, Auth.IntegratingAppType appType, String incomingToken, Auth.OAuth2TokenExchangeType tokenType) {
        Auth.JWT jwt = Auth.JWTUtil.validateJWTWithKeysEndpoint(incomingToken, EXTERNAL_IDP_JWKS_URL, true);

        String audience = getAudience(incomingToken);

        if (!audience.equals(OIDC_AUDIENCE)) {
            return new Auth.TokenValidationResult(false);
        }

        Datetime expClaim = (Datetime) jwt.getAdditionalClaims().get('exp');
          if (expClaim < Datetime.now()) {
              return new Auth.TokenValidationResult(false);
          }

        Auth.UserData userData = getUserDataFromJWT(jwt);
        if (userData == null) {
            return new Auth.TokenValidationResult(false);
        }

        return new Auth.TokenValidationResult(true, null, userData, incomingToken, tokenType, null);
    }

    global override Boolean mapToUser(Id networkId, Auth.TokenValidationResult result, Boolean canCreateUser, Boolean canCreateContact, String appDeveloperName, Auth.IntegratingAppType appType) {
        return true;
    }

    global override User getUserForTokenSubject(Id networkId, Auth.TokenValidationResult result, Boolean canCreateUser, String appDeveloperName, Auth.IntegratingAppType appType) {
        Auth.UserData data = result.getUserData();

        return findExistingUser(data);
    }
}

• Go to Identity -> Token Exchange Handlers
• Create a new Token Exchange Handler
  • Name: conviertokenexchangehandler
  • API Name: conviertokenexchangehandler
  • Supported Token Types: Access Token
  • Associated Apex Class: ConvierTokenExchangeHandler
  • Create
• Open token exchange handler details
  • Click “Enable New App”
  • Click “External Client App”
  • Select App convier
  • Select run as your user
  • Check Make conviertokenexchangehandler the default handler for this app
  • Done

In Convier

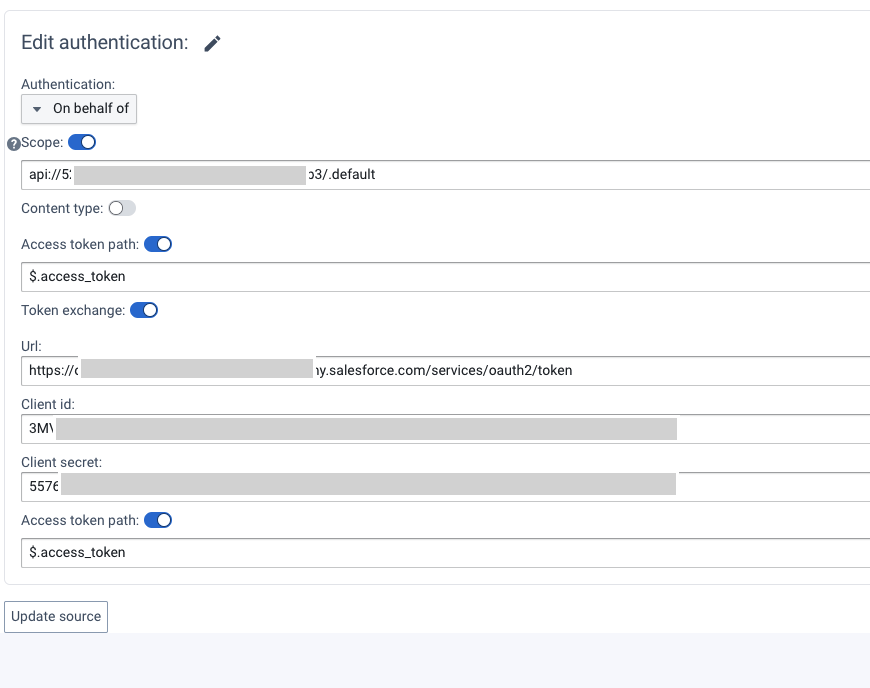

• Authentication
  • Select auth type “On behalf of”
  • Select scope $entraSalesforceAppId/.default
  • Check “Token exchange”
    • URL: https://$yourDomain.salesforce.com/services/oauth2/token
    • Client ID: $consumerKey
    • Client secret: $consumerSecret
• Config
  • Set base URL: https://$yourDomain.salesforce.com
  • Add endpoint whoami
    • URI: /services/oauth2/userinfo
    • Response path: $
    • Click “Get schema”
    • Verify that you see your user
• Save

Setup with mactine-to-machine (client_credentials) authentication

In Salesforce

• Create External Client App, assign appropriate permissions
• Check Enable Client Credentials Flow
• Copy $consumerKey and $consumerSecret

In Convier

• Under authentication, select “Username password”
• URL: https://$yourDomain.salesforce.com/services/oauth2/token
• Method: POST
• Add payloads:
  • client_id: $consumerKey
  • client_secret: $consumerSecret
• Save
